新特光電提供各種YAG聚焦鏡片，包括：YAG單片聚焦鏡，YAG雙片復合聚焦鏡，YAG三片復合聚焦鏡，YAG非球面聚焦鏡，材質有：石英、K9、BK7、硒化鋅、砷化鎵等，品種齊全，歡迎選購！
我們一站式供應各種類型的激光聚焦鏡,YAG聚焦鏡,CO2聚焦鏡,激光透鏡,平凸聚焦鏡,平凸透鏡,雙凸聚焦鏡,雙凸透鏡,平凹聚焦鏡,平凹透鏡,雙凹聚焦鏡,雙凹透鏡,彎月聚焦鏡,平凸柱面鏡,耦合透鏡,準直鏡片,單片聚焦鏡,多片鏡透鏡,多片聚焦鏡,復合聚焦鏡,非球面鏡,離子透鏡,聚焦鏡片，可提供選型、技術指導、安裝培訓、個性定制等全生命周期、全流程服務，歡迎聯系我們的產品經理！

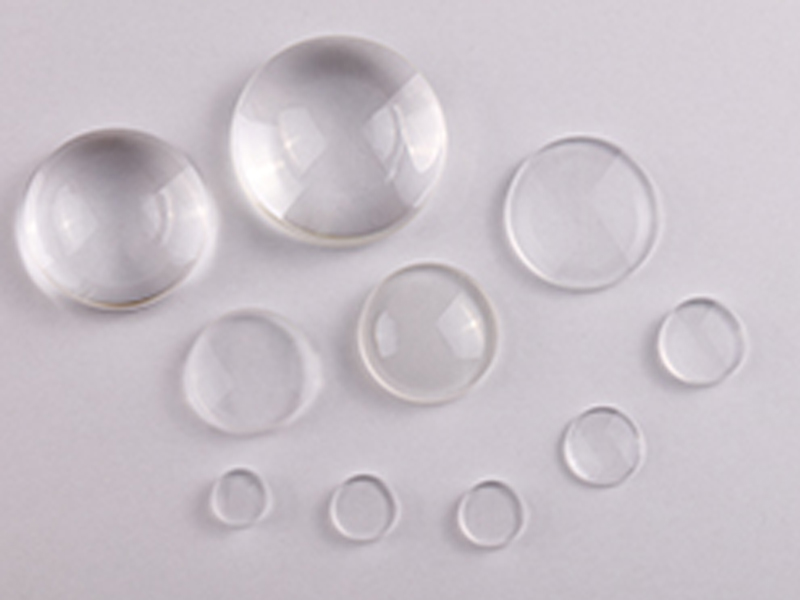

本公司生產各種高損傷閾值透鏡，根據透鏡的面型有包括平凸，雙凸，平凹，雙凹，彎月等等。透鏡在光學系統中的作用分為三種：聚焦、耦合、準直。
聚焦鏡片：聚焦鏡被廣泛用于激光加工（如：切割、打標、焊接、雕刻等）和各種激光系統中。
耦合透鏡：一束激光要想用光纖傳播，要把激光束通過鏡片準直，聚焦到光纖內。
準直鏡片：被用在光束傳遞系統中，以維持激光諧振腔和聚焦光學元件之間的光束的準直性。 廣泛應用于激光打標機、激光切割機、激光焊接機、光纖切割機、手持焊接機等激光加工領域。
主要技術參數
| 材料 | K9/石英 | 尺寸公差 | +0.1/-0.1mm |
| 厚度公差 | ±0.1mm | 焦距公差 | ±2%@1064nm |
| 光潔度 | 40/20 | 面型 | λ/4@632.8nm |
| 有效孔徑 | >90% | 平行度 | ￡1’ |
| 鍍膜 | 介質膜 | 側邊 | <0.2x45° |
常用規格
| 直徑mm | 焦距mm | 面型 | 激光波長nm |
| 18 | 55/80/150 | 雙凸 | 1050-1080 |
| 20 | 30/35/40/50/60/70/80/100/120/150/200 | 平凸/雙凸 | 1050-1080 |
| 25 | 70/100/120/150 | 平凸/雙凸 | 1050-1080 |
| 15.4 | 70/100/120/150 | 平凸/雙凸 | 1050-1080 |
| 28 | 80/120 | 平凸 | 1064 |
| 30 | 40/50/60/70/75/90/100/120/150/200/250/300 | 平凸/雙凸/彎月/組合 | 1064/694.3 |
| 34 | 80/100 | 平凸/雙凸 | 1064 |
| 36 | 55/70/80/100/120/150/180/220 | 平凸/雙凸/彎月/組合 | 1064/915/980 |
| 40 | 100/120/150/180/300 | 平凸/雙凸/彎月 | 1050-1080 |
| 41.5 | 80/100/120/150/180 | 雙凸/彎月/組合 | 1050-1080 |
| 42 | 80/120/200 | 雙凸/彎月/組合 | 1050-1080 |
| 50 | 100/120/150/180/200 | 雙凸/彎月/組合 | 1050-1080 |
| 50.8 | 150/250 | 平凸/雙凸 | 1050-1080 |
| 12.7 | -15/-30/-47/-70 | 平凹 | 1050-1080 |
| 16 | -20/-30/-37/-47/-70 | 平凹/雙凹 | 1050-1080 |
| 20 | -30/-100 | 平凹 | 1050-1080 |
材料：BK7
直徑公差：+0/-0.1mm
厚度公差：±0.2mm
平整度：λ/4 @632.8nm
有效孔徑：90%
焦距公差：+/-1%
光潔度：40-20
側邊：<0.25mm x 45
設計波長：587.6nm
中心度： 3 arc min
常用鍍膜波長：405nm, 468nm, 532nm, 650nm, 808nm, 980nm, 1064nm, 1319nm和1550nm

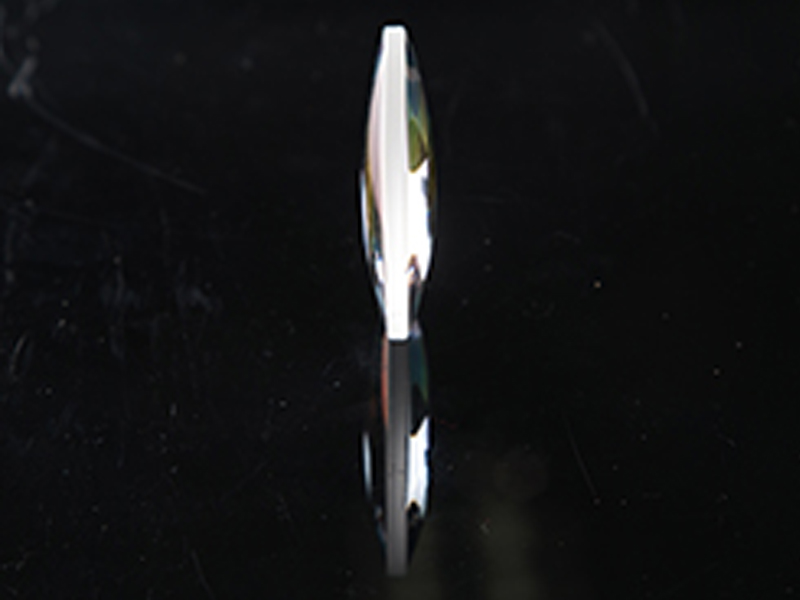

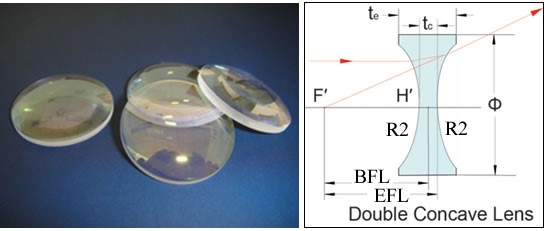

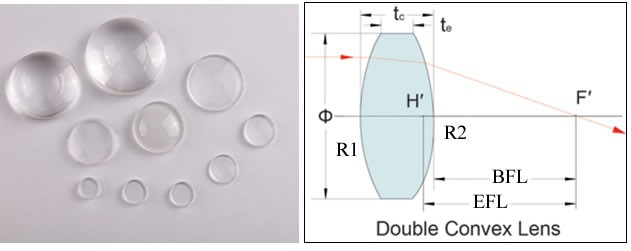

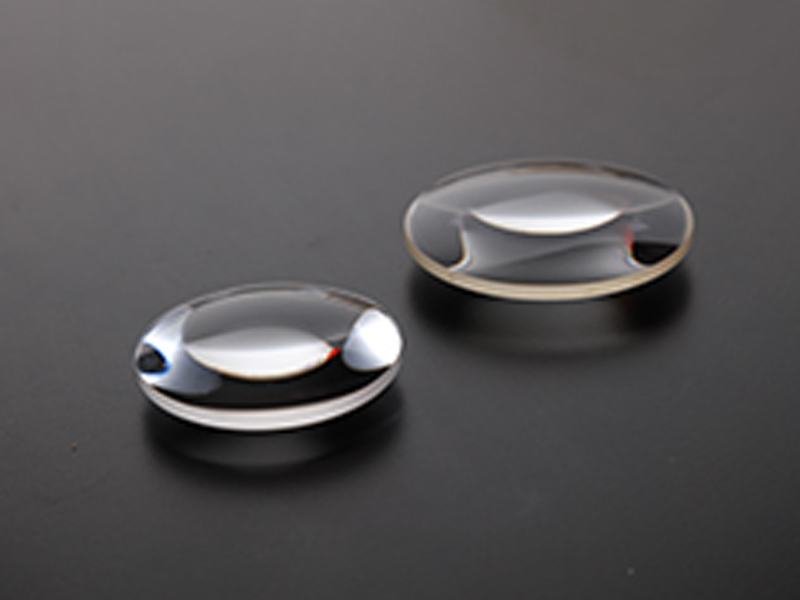

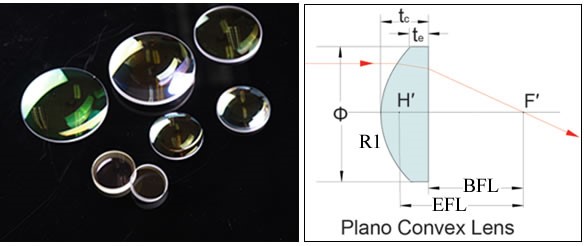

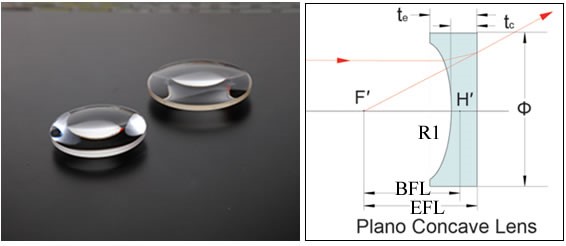

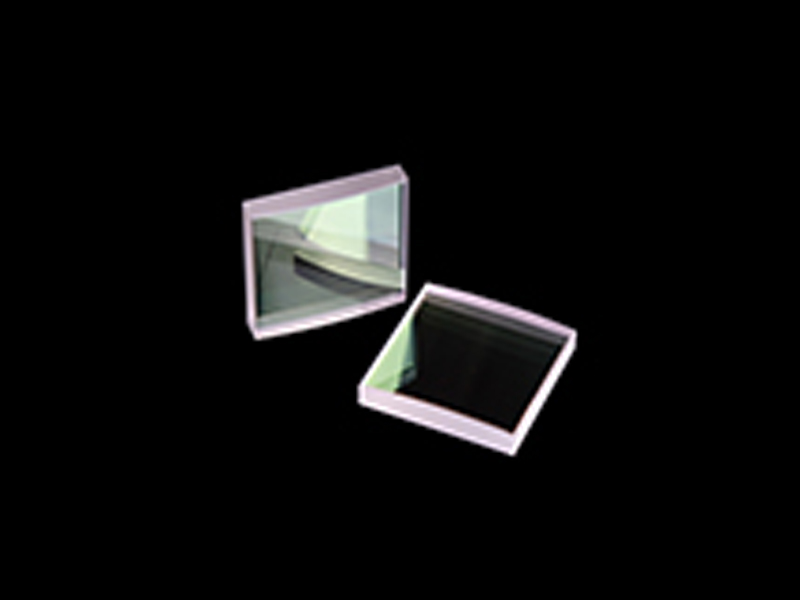

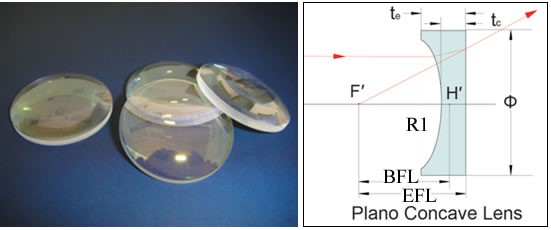

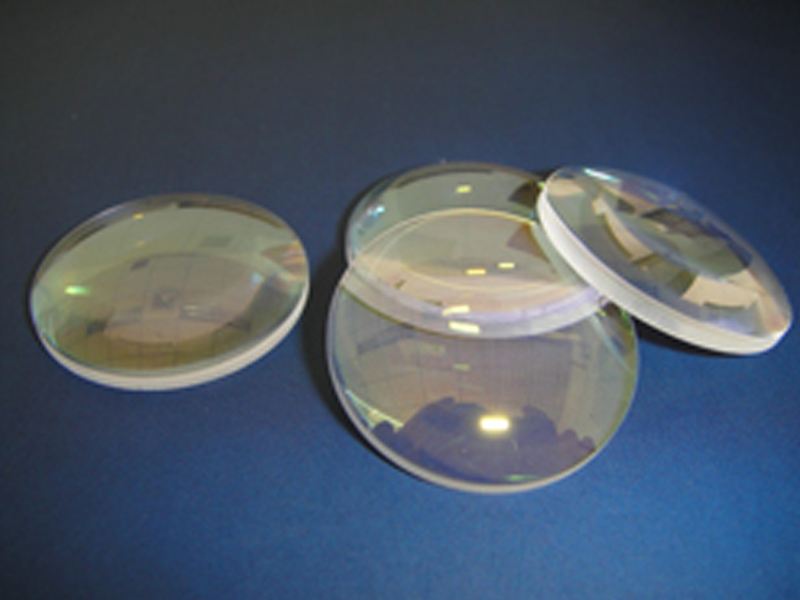

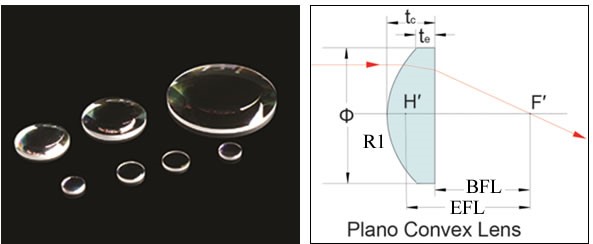

參數表符號：OD外徑；EFL有效焦距；BFL后焦距；R1和R2曲率半徑；TC中心厚度；TE 邊緣厚度。所有長度單位是mm，產品型號中XXXX指激光波長（單位是nm）。
| 產品型號 | OD | EFL | BFL | R1 | TC | TE |
| STJ-XXXX-L4B-06-010 | 6 | 10 | 8.02 | 5.16 | 3.00 | 2.04 |
| STJ-XXXX-L4B-06-015 | 6 | 15 | 13.02 | 7.76 | 3.00 | 2.40 |
| STJ-XXXX-L4B-06-020 | 6 | 20 | 18.04 | 10.43 | 3.00 | 2.56 |
| STJ-XXXX-L4B-06-025 | 6 | 25 | 23.02 | 12.90 | 3.00 | 2.65 |
| STJ-XXXX-L4B-06-030 | 6 | 30 | 28.02 | 15.50 | 3.00 | 2.71 |
| STJ-XXXX-L4B-06-036 | 6 | 36 | 34.02 | 18.62 | 3.00 | 2.76 |
| STJ-XXXX-L4B-06-048 | 6 | 48 | 46.02 | 24.82 | 3.00 | 2.82 |
| STJ-XXXX-L4B-06-060 | 6 | 60 | 58.02 | 31.01 | 3.00 | 2.85 |
| STJ-XXXX-L4B-10-015 | 10 | 15 | 12.37 | 7.76 | 4.00 | 2.18 |
| STJ-XXXX-L4B-10-020 | 10 | 20 | 17.71 | 10.43 | 3.50 | 2.22 |
| STJ-XXXX-L4B-10-025 | 10 | 25 | 22.69 | 12.90 | 3.50 | 2.49 |
| STJ-XXXX-L4B-10-030 | 10 | 30 | 28.02 | 15.50 | 3.00 | 2.17 |
| STJ-XXXX-L4B-10-040 | 10 | 40 | 38.02 | 20.70 | 3.00 | 2.39 |
| STJ-XXXX-L4B-10-050 | 10 | 50 | 48.35 | 25.84 | 2.50 | 2.01 |
| STJ-XXXX-L4B-10-075 | 10 | 75 | 73.35 | 38.73 | 2.50 | 2.18 |
| STJ-XXXX-L4B-15-020 | 15 | 20 | 16.41 | 10.43 | 5.50 | 2.32 |
| STJ-XXXX-L4B-15-025 | 15 | 25 | 21.70 | 12.90 | 5.00 | 2.60 |
| STJ-XXXX-L4B-15-030 | 15 | 30 | 27.03 | 15.50 | 4.50 | 2.56 |
| STJ-XXXX-L4B-15-040 | 15 | 40 | 37.37 | 20.70 | 4.00 | 2.59 |
| STJ-XXXX-L4B-15-060 | 15 | 60 | 57.70 | 31.14 | 3.50 | 2.58 |
| STJ-XXXX-L4B-20-030 | 20 | 30 | 26.04 | 15.50 | 6.00 | 2.34 |
| STJ-XXXX-L4B-20-040 | 20 | 40 | 36.71 | 20.70 | 5.00 | 2.42 |
| STJ-XXXX-L4B-20-050 | 20 | 50 | 47.03 | 25.84 | 4.50 | 2.49 |
| STJ-XXXX-L4B-20-080 | 20 | 80 | 77.69 | 41.34 | 3.50 | 2.27 |
| STJ-XXXX-L4B-25-030 | 25 | 30 | 24.39 | 15.50 | 8.50 | 2.17 |
| STJ-XXXX-L4B-25-040 | 25 | 40 | 35.72 | 20.70 | 6.50 | 2.30 |
| STJ-XXXX-L4B-25-050 | 25 | 50 | 46.37 | 25.84 | 5.50 | 2.28 |
| STJ-XXXX-L4B-25-070 | 25 | 70 | 67.03 | 36.14 | 4.50 | 2.27 |
| STJ-XXXX-L4B-25-100 | 25 | 100 | 97.36 | 51.69 | 4.00 | 2.47 |
| STJ-XXXX-L4B-25-150 | 25 | 150 | 147.69 | 77.52 | 3.50 | 2.49 |
| STJ-XXXX-L4B-30-040 | 30 | 40 | 34.40 | 20.70 | 8.50 | 2.06 |
| STJ-XXXX-L4B-30-050 | 30 | 50 | 45.39 | 25.84 | 7.00 | 2.20 |
| STJ-XXXX-L4B-30-070 | 30 | 70 | 66.04 | 36.14 | 6.00 | 2.74 |
| STJ-XXXX-L4B-30-100 | 30 | 100 | 96.70 | 51.69 | 5.00 | 2.78 |
| STJ-XXXX-L4B-30-150 | 30 | 150 | 147.36 | 77.52 | 4.00 | 2.53 |
| STJ-XXXX-L4B-30-180 | 30 | 180 | 177.69 | 93.02 | 3.50 | 2.28 |
| STJ-XXXX-L4B-36-050 | 36 | 50 | 43.74 | 25.84 | 9.50 | 2.20 |
| STJ-XXXX-L4B-36-080 | 36 | 80 | 75.38 | 41.34 | 7.00 | 2.88 |
| STJ-XXXX-L4B-36-100 | 36 | 100 | 96.05 | 51.69 | 6.00 | 2.76 |
| STJ-XXXX-L4B-36-120 | 36 | 120 | 116.70 | 62.00 | 5.00 | 2.33 |
| STJ-XXXX-L4B-36-150 | 36 | 150 | 147.03 | 77.52 | 4.50 | 2.38 |
| STJ-XXXX-L4B-36-180 | 36 | 180 | 177.36 | 93.02 | 4.00 | 2.24 |
| STJ-XXXX-L4B-36-220 | 36 | 220 | 217.37 | 113.83 | 4.00 | 2.57 |
| STJ-XXXX-L4B-40-040 | 40 | 50 | 42.42 | 25.84 | 11.50 | 2.02 |
| STJ-XXXX-L4B-40-080 | 40 | 80 | 75.05 | 41.34 | 7.50 | 2.34 |
| STJ-XXXX-L4B-40-100 | 40 | 100 | 95.72 | 51.69 | 6.50 | 2.47 |
| STJ-XXXX-L4B-40-120 | 40 | 120 | 116.04 | 62.00 | 6.00 | 2.69 |
| STJ-XXXX-L4B-40-150 | 40 | 150 | 146.70 | 77.52 | 5.00 | 2.38 |
| STJ-XXXX-L4B-40-180 | 40 | 180 | 177.03 | 93.02 | 4.50 | 2.32 |
| STJ-XXXX-L4B-40-220 | 40 | 220 | 217.37 | 113.83 | 4.00 | 2.23 |
| STJ-XXXX-L4B-42-060 | 42 | 60 | 52.78 | 31.14 | 11.00 | 2.85 |
| STJ-XXXX-L4B-42-080 | 42 | 80 | 74.40 | 41.34 | 8.50 | 2.77 |
| STJ-XXXX-L4B-42-100 | 42 | 100 | 95.39 | 51.69 | 7.00 | 2.54 |
| STJ-XXXX-L4B-42-120 | 42 | 120 | 116.04 | 62.00 | 6.00 | 2.34 |
| STJ-XXXX-L4B-42-180 | 42 | 180 | 175.65 | 77.52 | 5.50 | 2.60 |
| STJ-XXXX-L4B-42-220 | 42 | 220 | 215.97 | 93.02 | 5.00 | 2.60 |
| STJ-XXXX-L4B-42-300 | 42 | 300 | 295.96 | 113.83 | 4.50 | 2.55 |
| STJ-XXXX-L4B-50-075 | 50 | 75 | 67.41 | 38.73 | 11.50 | 2.35 |
| STJ-XXXX-L4B-50-100 | 50 | 100 | 94.07 | 51.69 | 9.00 | 2.55 |
| STJ-XXXX-L4B-50-125 | 50 | 125 | 120.06 | 64.60 | 7.50 | 2.47 |
| STJ-XXXX-L4B-50-150 | 50 | 150 | 145.39 | 77.52 | 7.00 | 2.86 |
| STJ-XXXX-L4B-50-175 | 50 | 175 | 171.04 | 90.44 | 6.00 | 2.48 |
| STJ-XXXX-L4B-50-220 | 50 | 220 | 216.38 | 113.83 | 5.50 | 2.72 |
| STJ-XXXX-L4B-50-300 | 50 | 300 | 297.03 | 155.04 | 4.50 | 2.47 |
| STJ-XXXX-L4B-50-400 | 50 | 400 | 397.36 | 206.67 | 4.00 | 2.48 |
| Part No. | OD | EFL | BFL | R1 | TC | TE |
| STJ-XXXX-L4J-06-010 | 6 | 10 | 7.62 | 4.61 | 3.50 | 2.39 |
| STJ-XXXX-L4J-06-015 | 6 | 15 | 12.94 | 6.86 | 3.00 | 2.31 |
| STJ-XXXX-L4J-06-020 | 6 | 20 | 17.95 | 9.19 | 3.00 | 2.50 |
| STJ-XXXX-L4J-06-025 | 6 | 25 | 22.95 | 11.48 | 3.00 | 2.60 |
| STJ-XXXX-L4J-06-030 | 6 | 30 | 27.94 | 13.76 | 3.00 | 2.67 |
| STJ-XXXX-L4J-06-036 | 6 | 36 | 33.95 | 16.52 | 3.00 | 2.73 |
| STJ-XXXX-L4J-06-048 | 6 | 48 | 45.95 | 22.03 | 3.00 | 2.79 |
| STJ-XXXX-L4J-06-060 | 6 | 60 | 58.29 | 27.54 | 2.50 | 2.34 |
| STJ-XXXX-L4J-10-015 | 10 | 15 | 11.91 | 6.86 | 4.50 | 2.34 |
| STJ-XXXX-L4J-10-020 | 10 | 20 | 17.26 | 9.19 | 4.00 | 2.52 |
| STJ-XXXX-L4J-10-025 | 10 | 25 | 22.60 | 11.48 | 3.50 | 2.35 |
| STJ-XXXX-L4J-10-030 | 10 | 30 | 27.61 | 13.76 | 3.50 | 2.56 |
| STJ-XXXX-L4J-10-040 | 10 | 40 | 37.94 | 18.33 | 3.00 | 2.31 |
| STJ-XXXX-L4J-10-050 | 10 | 50 | 47.95 | 22.98 | 3.00 | 2.45 |
| STJ-XXXX-L4J-10-075 | 10 | 75 | 72.94 | 34.36 | 3.00 | 2.63 |
| STJ-XXXX-L4J-15-020 | 15 | 20 | 15.55 | 9.19 | 6.50 | 2.62 |
| STJ-XXXX-L4J-15-025 | 15 | 25 | 21.23 | 11.48 | 5.50 | 2.71 |
| STJ-XXXX-L4J-15-030 | 15 | 30 | 26.57 | 13.76 | 5.00 | 2.78 |
| STJ-XXXX-L4J-15-040 | 15 | 40 | 37.26 | 18.33 | 4.00 | 2.40 |
| STJ-XXXX-L4J-15-060 | 15 | 60 | 57.60 | 27.54 | 3.50 | 2.46 |
| STJ-XXXX-L4J-20-030 | 20 | 30 | 25.20 | 13.76 | 7.00 | 2.69 |
| STJ-XXXX-L4J-20-035 | 20 | 35 | 30.89 | 16.05 | 6.00 | 2.50 |
| STJ-XXXX-L4J-20-040 | 20 | 40 | 36.23 | 18.33 | 5.50 | 2.53 |
| STJ-XXXX-L4J-20-050 | 20 | 50 | 46.58 | 22.98 | 5.00 | 2.71 |
| STJ-XXXX-L4J-20-080 | 20 | 80 | 77.25 | 36.64 | 4.00 | 2.61 |
| STJ-XXXX-L4J-25-030 | 25 | 30 | 22.80 | 13.76 | 10.50 | 2.49 |
| STJ-XXXX-L4J-25-040 | 25 | 40 | 34.86 | 18.33 | 7.50 | 2.58 |
| STJ-XXXX-L4J-25-050 | 25 | 50 | 45.90 | 22.98 | 6.00 | 2.31 |
| STJ-XXXX-L4J-25-070 | 25 | 70 | 66.58 | 32.14 | 5.00 | 2.47 |
| STJ-XXXX-L4J-25-100 | 25 | 100 | 96.92 | 45.85 | 4.50 | 2.76 |
| STJ-XXXX-L4J-25-150 | 25 | 150 | 147.61 | 68.80 | 3.50 | 2.35 |
| STJ-XXXX-L4J-30-040 | 30 | 40 | 33.14 | 18.33 | 10.00 | 2.21 |
| STJ-XXXX-L4J-30-050 | 30 | 50 | 44.53 | 22.98 | 8.00 | 2.43 |
| STJ-XXXX-L4J-30-070 | 30 | 70 | 65.89 | 32.14 | 6.00 | 2.28 |
| STJ-XXXX-L4J-30-100 | 30 | 100 | 96.57 | 45.85 | 5.00 | 2.48 |
| STJ-XXXX-L4J-30-150 | 30 | 150 | 147.26 | 68.80 | 4.00 | 2.34 |
| STJ-XXXX-L4J-30-180 | 30 | 180 | 177.26 | 82.53 | 4.00 | 2.63 |
| STJ-XXXX-L4J-36-050 | 36 | 50 | 42.48 | 22.98 | 11.00 | 2.30 |
| STJ-XXXX-L4J-36-080 | 36 | 80 | 74.99 | 36.64 | 7.30 | 2.57 |
| STJ-XXXX-L4J-36-100 | 36 | 100 | 95.89 | 45.85 | 6.00 | 2.32 |
| STJ-XXXX-L4J-36-120 | 36 | 120 | 116.23 | 55.00 | 5.50 | 2.47 |
| STJ-XXXX-L4J-36-150 | 36 | 150 | 146.57 | 68.80 | 5.00 | 2.60 |
| STJ-XXXX-L4J-36-180 | 36 | 180 | 176.92 | 82.53 | 4.50 | 2.51 |
| STJ-XXXX-L4J-36-220 | 36 | 220 | 217.26 | 100.89 | 4.00 | 2.38 |
| STJ-XXXX-L4J-40-050 | 40 | 50 | 40.42 | 22.98 | 14.00 | 2.33 |
| STJ-XXXX-L4J-40-080 | 40 | 80 | 74.17 | 36.64 | 8.50 | 2.56 |
| STJ-XXXX-L4J-40-100 | 40 | 100 | 95.21 | 45.85 | 7.00 | 2.41 |
| STJ-XXXX-L4J-40-120 | 40 | 120 | 115.89 | 55.00 | 6.00 | 2.23 |
| STJ-XXXX-L4J-40-150 | 40 | 150 | 146.23 | 68.80 | 5.50 | 2.53 |
| STJ-XXXX-L4J-40-180 | 40 | 180 | 176.57 | 82.53 | 5.00 | 2.54 |
| STJ-XXXX-L4J-40-220 | 40 | 220 | 216.92 | 100.89 | 4.50 | 2.50 |
| STJ-XXXX-L4J-42-080 | 42 | 80 | 73.82 | 36.64 | 9.00 | 2.38 |
| STJ-XXXX-L4J-42-100 | 42 | 100 | 94.79 | 45.85 | 7.60 | 2.51 |
| STJ-XXXX-L4J-42-120 | 42 | 120 | 115.20 | 55.00 | 7.00 | 2.83 |
| STJ-XXXX-L4J-42-150 | 42 | 150 | 145.89 | 68.80 | 6.00 | 2.72 |
| STJ-XXXX-L4J-42-180 | 42 | 180 | 176.57 | 82.53 | 5.00 | 2.28 |
| STJ-XXXX-L4J-42-220 | 42 | 220 | 216.85 | 100.89 | 4.60 | 2.39 |
| STJ-XXXX-L4J-42-300 | 42 | 300 | 297.26 | 137.72 | 4.00 | 2.39 |
| STJ-XXXX-L4J-50-125 | 50 | 125 | 119.17 | 57.31 | 8.50 | 2.76 |
| STJ-XXXX-L4J-50-150 | 50 | 150 | 145.20 | 68.80 | 7.00 | 2.30 |
| STJ-XXXX-L4J-50-175 | 50 | 175 | 170.54 | 80.25 | 6.50 | 2.51 |
| STJ-XXXX-L4J-50-220 | 50 | 220 | 215.89 | 100.89 | 6.00 | 2.85 |
| STJ-XXXX-L4J-50-300 | 50 | 300 | 296.58 | 137.72 | 5.00 | 2.71 |
| STJ-XXXX-L4J-50-400 | 50 | 400 | 397.26 | 183.68 | 4.00 | 2.29 |
| 產品型號 | OD | EFL | BFL | R1=R2 | TC | TE |
| STJ-XXXX-L2B-06-012 | 6 | 12 | 11.22 | 12.00 | 2.30 | 1.54 |
| STJ-XXXX-L2B-06-018 | 6 | 18 | 17.19 | 18.19 | 2.40 | 1.90 |
| STJ-XXXX-L2B-06-024 | 6 | 24 | 23.20 | 24.39 | 2.40 | 2.03 |
| STJ-XXXX-L2B-06-030 | 6 | 30 | 29.16 | 30.58 | 2.50 | 2.20 |
| STJ-XXXX-L2B-06-036 | 6 | 36 | 35.30 | 36.85 | 2.10 | 1.86 |
| STJ-XXXX-L2B-10-015 | 10 | 15 | 13.62 | 14.79 | 4.00 | 2.26 |
| STJ-XXXX-L2B-10-020 | 10 | 20 | 18.81 | 20.06 | 3.50 | 2.23 |
| STJ-XXXX-L2B-10-030 | 10 | 30 | 28.82 | 30.40 | 3.50 | 2.67 |
| STJ-XXXX-L2B-10-040 | 10 | 40 | 39.20 | 40.93 | 2.40 | 1.79 |
| STJ-XXXX-L2B-10-050 | 10 | 50 | 49.10 | 51.22 | 2.70 | 2.21 |
| STJ-XXXX-L2B-10-080 | 10 | 80 | 78.97 | 82.16 | 3.10 | 2.80 |
| STJ-XXXX-L2B-15-025 | 15 | 25 | 23.50 | 25.07 | 4.40 | 2.10 |
| STJ-XXXX-L2B-15-030 | 15 | 30 | 28.65 | 30.31 | 4.00 | 2.11 |
| STJ-XXXX-L2B-15-040 | 15 | 40 | 38.78 | 40.71 | 3.65 | 2.26 |
| STJ-XXXX-L2B-15-060 | 15 | 60 | 58.90 | 61.45 | 3.30 | 2.38 |
| STJ-XXXX-L2B-15-080 | 15 | 80 | 78.97 | 82.16 | 3.10 | 2.41 |
| STJ-XXXX-L2B-15-100 | 15 | 100 | 98.92 | 102.80 | 3.25 | 2.70 |
| STJ-XXXX-L2B-20-030 | 20 | 30 | 28.16 | 30.06 | 5.40 | 1.98 |
| STJ-XXXX-L2B-20-040 | 20 | 40 | 38.49 | 40.56 | 4.50 | 2.00 |
| STJ-XXXX-L2B-20-055 | 20 | 55 | 53.93 | 56.30 | 3.20 | 1.41 |
| STJ-XXXX-L2B-20-070 | 20 | 70 | 68.64 | 71.65 | 4.10 | 2.70 |
| STJ-XXXX-L2B-20-080 | 20 | 80 | 78.97 | 82.16 | 3.10 | 1.88 |
| STJ-XXXX-L2B-20-100 | 20 | 100 | 98.92 | 102.80 | 3.25 | 2.27 |
| STJ-XXXX-L2B-30-040 | 30 | 40 | 37.39 | 40.00 | 7.65 | 1.81 |
| STJ-XXXX-L2B-30-055 | 30 | 55 | 52.92 | 55.77 | 6.20 | 2.09 |
| STJ-XXXX-L2B-30-070 | 30 | 70 | 67.94 | 71.29 | 6.15 | 2.96 |
| STJ-XXXX-L2B-30-080 | 30 | 80 | 78.01 | 81.66 | 5.95 | 3.17 |
| STJ-XXXX-L2B-30-100 | 30 | 100 | 98.47 | 102.57 | 4.60 | 2.39 |
| STJ-XXXX-L2B-30-120 | 30 | 120 | 118.37 | 123.19 | 4.90 | 3.07 |
| STJ-XXXX-L2B-40-060 | 40 | 60 | 57.13 | 60.53 | 8.50 | 1.70 |
| STJ-XXXX-L2B-40-080 | 40 | 80 | 77.52 | 81.41 | 7.40 | 2.41 |
| STJ-XXXX-L2B-40-100 | 40 | 100 | 97.55 | 102.09 | 7.35 | 3.39 |
| STJ-XXXX-L2B-40-150 | 40 | 150 | 148.31 | 154.17 | 5.10 | 2.49 |
| STJ-XXXX-L2B-40-200 | 40 | 200 | 198.30 | 205.84 | 5.15 | 3.20 |
| STJ-XXXX-L2B-40-300 | 40 | 300 | 298.33 | 309.22 | 5.05 | 3.76 |
| STJ-XXXX-L2B-50-080 | 50 | 80 | 76.20 | 80.72 | 11.25 | 3.31 |
| STJ-XXXX-L2B-50-120 | 50 | 120 | 117.48 | 122.73 | 7.55 | 2.40 |
| STJ-XXXX-L2B-50-180 | 50 | 180 | 178.36 | 185.20 | 4.95 | 1.56 |
| STJ-XXXX-L2B-50-250 | 50 | 250 | 248.18 | 257.46 | 5.50 | 3.07 |
| STJ-XXXX-L2B-50-300 | 50 | 300 | 298.33 | 309.22 | 5.05 | 3.03 |
| 產品型號 | OD | EFL | BFL | R1=R2 | TC | TE |
| STJ-XXXX-L2J-06-011 | 6 | 12 | 10.96 | 10.53 | 2.90 | 2.03 |
| STJ-XXXX-L2J-06-018 | 6 | 18 | 17.01 | 16.05 | 2.80 | 2.23 |
| STJ-XXXX-L2J-06-024 | 6 | 24 | 23.14 | 21.61 | 2.45 | 2.03 |
| STJ-XXXX-L2J-06-030 | 6 | 30 | 29.29 | 27.18 | 2.05 | 1.72 |
| STJ-XXXX-L2J-10-015 | 10 | 15 | 13.71 | 13.16 | 3.60 | 1.63 |
| STJ-XXXX-L2J-10-020 | 10 | 20 | 18.61 | 17.70 | 3.90 | 2.46 |
| STJ-XXXX-L2J-10-030 | 10 | 30 | 28.90 | 27.00 | 3.15 | 2.22 |
| STJ-XXXX-L2J-10-040 | 10 | 40 | 39.05 | 36.23 | 2.75 | 2.06 |
| STJ-XXXX-L2J-12-020 | 12 | 20 | 18.48 | 17.64 | 4.27 | 2.17 |
| STJ-XXXX-L2J-12-025 | 12 | 25 | 23.61 | 22.28 | 3.95 | 2.30 |
| STJ-XXXX-L2J-12-030 | 12 | 30 | 28.90 | 27.00 | 3.15 | 1.80 |
| STJ-XXXX-L2J-12-040 | 12 | 40 | 39.03 | 36.23 | 2.80 | 1.80 |
| STJ-XXXX-L2J-15-020 | 15 | 20 | 18.09 | 17.46 | 5.30 | 1.91 |
| STJ-XXXX-L2J-15-025 | 15 | 25 | 23.33 | 22.16 | 4.70 | 2.08 |
| STJ-XXXX-L2J-15-030 | 15 | 30 | 28.56 | 26.84 | 4.10 | 1.96 |
| STJ-XXXX-L2J-15-040 | 15 | 40 | 38.75 | 36.10 | 3.60 | 2.02 |
| STJ-XXXX-L2J-15-050 | 15 | 50 | 48.89 | 45.33 | 3.20 | 1.95 |
| STJ-XXXX-L2J-20-025 | 20 | 25 | 22.22 | 21.65 | 7.65 | 2.75 |
| STJ-XXXX-L2J-20-030 | 20 | 30 | 27.74 | 26.47 | 6.35 | 2.43 |
| STJ-XXXX-L2J-20-035 | 20 | 35 | 33.15 | 31.24 | 5.25 | 1.96 |
| STJ-XXXX-L2J-20-040 | 20 | 40 | 38.12 | 35.81 | 5.35 | 2.50 |
| STJ-XXXX-L2J-20-050 | 20 | 50 | 48.57 | 45.19 | 4.10 | 1.86 |
| STJ-XXXX-L2J-20-075 | 20 | 75 | 73.84 | 68.23 | 3.35 | 1.88 |
| STJ-XXXX-L2J-25-040 | 25 | 40 | 37.63 | 35.59 | 6.70 | 2.16 |
| STJ-XXXX-L2J-25-050 | 25 | 50 | 48.11 | 44.98 | 5.40 | 1.86 |
| STJ-XXXX-L2J-25-060 | 25 | 60 | 58.24 | 54.20 | 5.05 | 2.13 |
| STJ-XXXX-L2J-25-075 | 25 | 75 | 73.49 | 68.07 | 4.35 | 2.03 |
| STJ-XXXX-L2J-25-080 | 25 | 80 | 78.56 | 72.69 | 4.15 | 1.98 |
| STJ-XXXX-L2J-25-100 | 25 | 100 | 98.58 | 91.03 | 4.10 | 2.38 |
| STJ-XXXX-L2J-25-120 | 25 | 120 | 118.66 | 109.40 | 3.90 | 2.47 |
| STJ-XXXX-L2J-25-150 | 25 | 150 | 149.07 | 137.09 | 2.70 | 1.56 |
| STJ-XXXX-L2J-254-040 | 25.4 | 40 | 37.73 | 35.63 | 6.42 | 1.74 |
| STJ-XXXX-L2J-254-050 | 25.4 | 50 | 48.12 | 44.98 | 5.37 | 1.71 |
| STJ-XXXX-L2J-254-060 | 25.4 | 60 | 58.24 | 54.20 | 5.05 | 2.03 |
| STJ-XXXX-L2J-254-075 | 25.4 | 75 | 73.50 | 68.07 | 4.35 | 1.95 |
| STJ-XXXX-L2J-254-080 | 25.4 | 80 | 78.40 | 72.61 | 4.63 | 2.39 |
| STJ-XXXX-L2J-254-100 | 25.4 | 100 | 98.58 | 91.03 | 4.10 | 2.32 |
| STJ-XXXX-L2J-254-120 | 25.4 | 120 | 118.66 | 109.40 | 3.90 | 2.42 |
| STJ-XXXX-L2J-254-150 | 25.4 | 150 | 149.07 | 137.09 | 2.70 | 1.52 |
| 產品型號 | OD | EFL | BFL | R1 | TC | TE |
| STJ-XXXX-L3B-06-012 | 6 | -12 | -12.99 | -6.20 | 1.50 | 2.27 |
| STJ-XXXX-L3B-06-018 | 6 | -18 | -19.32 | -9.30 | 2.00 | 2.50 |
| STJ-XXXX-L3B-06-024 | 6 | -24 | -25.19 | -12.40 | 1.80 | 2.17 |
| STJ-XXXX-L3B-06-030 | 6 | -30 | -31.32 | -15.50 | 2.00 | 2.29 |
| STJ-XXXX-L3B-06-040 | 6 | -40 | -41.25 | -20.67 | 1.90 | 2.12 |
| STJ-XXXX-L3B-10-016 | 10 | -16 | -17.05 | -8.27 | 1.60 | 3.28 |
| STJ-XXXX-L3B-10-020 | 10 | -20 | -20.99 | -10.34 | 1.50 | 2.79 |
| STJ-XXXX-L3B-10-030 | 10 | -30 | -31.05 | -15.50 | 1.60 | 2.43 |
| STJ-XXXX-L3B-10-035 | 10 | -35 | -36.19 | -18.09 | 1.80 | 2.50 |
| STJ-XXXX-L3B-10-040 | 10 | -40 | -41.32 | -20.67 | 2.00 | 2.61 |
| STJ-XXXX-L3B-15-020 | 15 | -20 | -20.99 | -10.34 | 1.50 | 4.72 |
| STJ-XXXX-L3B-15-035 | 15 | -35 | -36.19 | -18.09 | 1.80 | 3.43 |
| STJ-XXXX-L3B-15-040 | 15 | -40 | -40.99 | -20.67 | 1.50 | 2.91 |
| STJ-XXXX-L3B-15-050 | 15 | -50 | -51.32 | -25.84 | 2.00 | 3.11 |
| STJ-XXXX-L3B-15-060 | 15 | -60 | -61.32 | -31.01 | 2.00 | 2.92 |
| STJ-XXXX-L3B-15-15480 | 15 | -15480 | -15482.6 | -8000.06 | 4.00 | 4.00 |
| STJ-XXXX-L3B-20-030 | 20 | -30 | -31.05 | -15.50 | 1.60 | 5.26 |
| STJ-XXXX-L3B-20-040 | 20 | -40 | -40.99 | -20.67 | 1.50 | 4.08 |
| STJ-XXXX-L3B-20-050 | 20 | -50 | -51.05 | -25.84 | 1.60 | 3.61 |
| STJ-XXXX-L3B-20-080 | 20 | -80 | -81.32 | -41.34 | 2.00 | 3.23 |
| STJ-XXXX-L3B-20-100 | 20 | -100 | -101.45 | -51.68 | 2.20 | 3.18 |
| STJ-XXXX-L3B-20-3870 | 20 | -3870 | -3872.64 | -2000.02 | 4.00 | 4.02 |
| STJ-XXXX-L3B-20-7740 | 20 | -7740 | -7742.64 | -4000.03 | 4.00 | 4.01 |
| STJ-XXXX-L3B-20-19350 | 20 | -19350 | -19353.3 | -10000.1 | 5.00 | 5.00 |
| STJ-XXXX-L3B-25-040 | 25 | -40 | -40.99 | -20.67 | 1.50 | 5.71 |
| STJ-XXXX-L3B-25-050 | 25 | -50 | -50.99 | -25.84 | 1.50 | 4.72 |
| STJ-XXXX-L3B-25-060 | 25 | -60 | -61.05 | -31.01 | 1.60 | 4.23 |
| STJ-XXXX-L3B-25-080 | 25 | -80 | -81.45 | -41.34 | 2.20 | 4.13 |
| STJ-XXXX-L3B-25-100 | 25 | -100 | -101.71 | -51.68 | 2.60 | 4.13 |
| STJ-XXXX-L3B-40-060 | 40 | -60 | -60.99 | -31.01 | 1.50 | 8.81 |
| STJ-XXXX-L3B-40-080 | 40 | -80 | -81.05 | -41.34 | 1.60 | 6.76 |
| STJ-XXXX-L3B-40-100 | 40 | -100 | -101.19 | -51.68 | 1.80 | 5.83 |
| 產品型號 | OD | EFL | BFL | R1 | TC | TE |
| STJ-XXXX-L3J-06-012 | 6 | -12 | -13.10 | -5.50 | 1.60 | 2.49 |
| STJ-XXXX-L3J-06-018 | 6 | -18 | -19.37 | -8.25 | 2.00 | 2.56 |
| STJ-XXXX-L3J-06-024 | 6 | -24 | -25.37 | -11.00 | 2.00 | 2.42 |
| STJ-XXXX-L3J-06-035 | 6 | -35 | -36.51 | -16.04 | 2.20 | 2.48 |
| STJ-XXXX-L3J-10-018 | 10 | -18 | -19.37 | -8.25 | 2.00 | 3.69 |
| STJ-XXXX-L3J-10-024 | 10 | -24 | -25.37 | -11.00 | 2.00 | 3.20 |
| STJ-XXXX-L3J-10-030 | 10 | -30 | -31.37 | -13.75 | 2.00 | 2.94 |
| STJ-XXXX-L3J-10-040 | 10 | -40 | -41.51 | -18.34 | 2.20 | 2.89 |
| STJ-XXXX-L3J-127-020 | 12.7 | -20 | -21.10 | -9.17 | 1.60 | 4.16 |
| STJ-XXXX-L3J-127-024 | 12.7 | -24 | -25.37 | -11.00 | 2.00 | 4.02 |
| STJ-XXXX-L3J-127-030 | 12.7 | -30 | -31.65 | -13.75 | 2.40 | 3.95 |
| STJ-XXXX-L3J-127-040 | 12.7 | -40 | -41.71 | -18.34 | 2.50 | 3.63 |
| STJ-XXXX-L3J-127-050 | 12.7 | -50 | -52.06 | -22.92 | 3.00 | 3.90 |
| STJ-XXXX-L3J-20-030 | 20 | -30 | -31.10 | -13.75 | 1.60 | 5.91 |
| STJ-XXXX-L3J-20-040 | 20 | -40 | -41.10 | -18.34 | 1.60 | 4.57 |
| STJ-XXXX-L3J-20-050 | 20 | -50 | -51.37 | -22.92 | 2.00 | 4.30 |
| STJ-XXXX-L3J-20-075 | 20 | -75 | -76.78 | -34.38 | 2.60 | 4.09 |
| STJ-XXXX-L3J-20-100 | 20 | -100 | -102.06 | -45.84 | 3.00 | 4.10 |
| STJ-XXXX-L3J-20-4363 | 20 | -4363 | -4366.4 | -2000.0 | 5.00 | 5.03 |
| STJ-XXXX-L3J-254-035 | 25.4 | -35 | -36.03 | -16.04 | 1.50 | 7.74 |
| STJ-XXXX-L3J-254-040 | 25.4 | -40 | -41.10 | -18.34 | 1.60 | 6.71 |
| STJ-XXXX-L3J-254-050 | 25.4 | -50 | -51.23 | -22.92 | 1.80 | 5.64 |
| STJ-XXXX-L3J-254-075 | 25.4 | -75 | -76.23 | -34.38 | 1.80 | 4.23 |
| STJ-XXXX-L3J-254-100 | 25.4 | -100 | -101.71 | -45.84 | 2.50 | 4.29 |
| STJ-XXXX-L3J-508-100 | 50.8 | -100 | -101.23 | -45.84 | 1.80 | 9.48 |
| STJ-XXXX-L3J-508-150 | 50.8 | -150 | -151.10 | -68.76 | 1.60 | 6.46 |
| STJ-XXXX-L3J-508-250 | 50.8 | -250 | -251.37 | -114.60 | 2.00 | 4.85 |
| 產品型號 | OD | EFL | BFL | R1=R2 | TC | TE |
| STJ-XXXX-L1B-06-012 | 6 | -12 | -12.87 | -12.85 | 2.72 | 3.43 |
| STJ-XXXX-L1B-06-018 | 6 | -18 | -18.76 | -19.00 | 2.37 | 2.85 |
| STJ-XXXX-L1B-06-024 | 6 | -24 | -24.72 | -25.18 | 2.22 | 2.58 |
| STJ-XXXX-L1B-12-018 | 12 | -18 | -18.76 | -19.00 | 2.37 | 4.31 |
| STJ-XXXX-L1B-12-024 | 12 | -24 | -24.72 | -25.18 | 2.22 | 3.67 |
| STJ-XXXX-L1B-12-030 | 12 | -30 | -30.56 | -31.30 | 1.72 | 2.88 |
| STJ-XXXX-L1B-20-030 | 20 | -30 | -30.56 | -31.30 | 1.72 | 5.00 |
| STJ-XXXX-L1B-20-040 | 20 | -40 | -40.49 | -41.60 | 1.50 | 3.94 |
| STJ-XXXX-L1B-20-060 | 20 | -60 | -60.69 | -62.37 | 2.10 | 3.71 |
| STJ-XXXX-L1B-25-040 | 25 | -40 | -40.49 | -41.60 | 1.50 | 5.35 |
| STJ-XXXX-L1B-25-060 | 25 | -60 | -60.69 | -62.37 | 2.10 | 4.63 |
| STJ-XXXX-L1B-25-080 | 25 | -80 | -80.70 | -83.05 | 2.14 | 4.03 |
| STJ-XXXX-L1B-40-050 | 40 | -50 | -50.65 | -52.02 | 2.00 | 10.00 |
| STJ-XXXX-L1B-40-070 | 40 | -70 | -70.83 | -72.78 | 2.53 | 8.13 |
| STJ-XXXX-L1B-50-100 | 50 | -100 | -100.82 | -103.79 | 2.51 | 8.62 |
| STJ-XXXX-L1B-50-200 | 50 | -200 | -200.83 | -207.15 | 2.52 | 5.55 |
| 產品型號 | OD | EFL | BFL | R1=R2 | TC | TE |
| STJ-XXXX-L1J-06-012 | 6 | -12 | -12.64 | -11.30 | 1.92 | 2.73 |
| STJ-XXXX-L1J-06-030 | 6 | -30 | -30.64 | -27.80 | 1.90 | 2.22 |
| STJ-XXXX-L1J-10-020 | 10 | -20 | -20.62 | -18.62 | 1.83 | 3.20 |
| STJ-XXXX-L1J-10-030 | 10 | -30 | -30.64 | -27.80 | 1.90 | 2.81 |
| STJ-XXXX-L1J-127-025 | 12.7 | -25 | -25.55 | -23.17 | 1.61 | 3.38 |
| STJ-XXXX-L1J-127-035 | 12.7 | -35 | -35.64 | -32.38 | 1.87 | 3.13 |
| STJ-XXXX-L1J-20-040 | 20 | -40 | -40.68 | -36.98 | 2.00 | 4.76 |
| STJ-XXXX-L1J-20-050 | 20 | -50 | -50.58 | -46.11 | 1.71 | 3.90 |
| STJ-XXXX-L1J-254-045 | 25.4 | -45 | -45.71 | -41.58 | 2.08 | 6.05 |
| STJ-XXXX-L1J-254-060 | 25.4 | -60 | -60.68 | -55.32 | 2.00 | 4.96 |
| 直徑 (mm) | 有效焦距 (mm) | 波長 (nm) |
| Oslash;6 | 45 | 1064 |
| Oslash;36 | 200 | 980 |
| Oslash;36 | 400 | 980 |
| 25.4X25.4 | 250 | 980 |
| 50X30 | 60 | 980 |
可以根據客戶要求定制。
常用激光透鏡的波長為266nm, 355nm, 405nm, 468nm, 532nm, 650nm, 808nm, 980nm, 1064nm, 1319nm, 1550nm, 10.6um，都用介質增透膜。
1). 0ordm; AOI AR單一激光波長鍍膜
設計波長： AR@266nm,AR@355nm, AR@405nm, AR@468nm, AR@532nm, AR@650nm, AR@808nm, AR@980nm, AR@1064nm, AR@1319nm, AR@1550nm, AR@2100nm
反射：R<0.02%
2). 0ordm; AOI AR雙激光波長鍍膜
設計波長：AR@532nm 和 1064nm，1064nm R<0.2%, 532nm R<0.5%
3). 0ordm; AOI AR雙激光波長鍍膜
設計波長：AR@808nm和1064nm，1064nm R < 0.2%, 808nm R < 0.5%
4). 0ordm; AOI AR雙激光波長鍍膜
設計波長：AR@1064nm和1319nm，1064nmR<0.2%,1319nm R<0.5%
5). 0ordm;~ 45ordm; AOI 高反單一波長鍍膜
設計波長：HR@266nm, HR@355nm, HR@405nm, HR@468nm, HR@532nm, HR@650nm, HR@808nm, HR@980nm, HR@1064nm, HR@1319nm,HR@1550nm, 反射率R>99.9%
6). 0ordm; AOI 高反雙波長鍍膜
設計波長：HR@532nm和1064nm, HT@808nm, 1064nm R>99.8%,532nm R>99.5%
7). 0ordm; AOI高反三波長鍍膜
設計波長：355nm和532nm和1064nm, 355nm 532nm,1064nm, R>99.5%
8). 0ordm; AOI PR單一波長鍍膜分束
設計波長：PR@1064nm; 半透T=5%~95% ±2%
9). 0ordm; AOI長波/短波通光片
設計波長：HR@1064nm,R>99.8%; HT@808nm T>99% (AR@808nm，雙面)
設計波長：HR@808nm,R>99.8; HT@1064nm T>99% (AR@1064nm,雙面)
10). 0ordm; AOI短波通光片
設計波長：HR@1064nm, R>99.8%; HT@532nm T>98% (AR@532nm,雙面)
11). 0ordm; AOI長波通光片
設計波長：HR@266nm ,R>99.9%; HT@532nm T>99% (AR@532nm,雙面)
12). 0ordm; AOI長波通光片
設計波長：HR@355nm,R>99.8%; HT@532nm 和 @1064nm T>98%; (AR@1064nm, AR@532nm, 雙面)
13). 0ordm; AOI短波通光片 Laser Line SHORTPASS
設計波長：HR@946nm, R>99.8%; HT@810nm, T>99% (AR@810nm, 雙面)

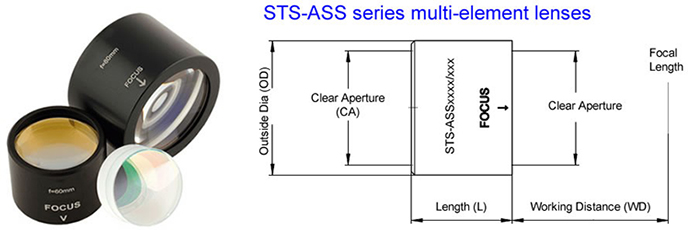

| 產品型號 | λ[nm] | FL [mm] | 材料 | OD [mm] | CA[mm] | 長度[mm] | WD [mm] | 鏡片數量 |
| STS-ASS5185/199 | 266 | 81.9 | 石英 | 40 | 35 | 15 | 73.4 | 2 |
| STS-ASS2550/199 | 266 | 44.3 | 石英 | 30 | 23 | 20 | 40.4 | 2 |
| STS-ASS2020/199 | 266 | 23.8 | 石英 | 25 | 12.5 | 17 | 17.1 | 3 |
| STS-ASS2060/199 | 266 | 57.3 | 石英 | 40 | 34 | 30 | 43.9 | 3 |
| STS-ASS5120/199 | 266 | 109 | 石英 | 48 | 40 | 20 | 99.1 | 2 |
| STS-ASS2060/075 | 355 | 60 | 石英 | 40 | 34 | 30 | 46.5 | 3 |
| STS-ASS2550/075 | 355 | 48.2 | 石英 | 30 | 23 | 20 | 43.5 | 2 |
| STS-ASS5185/075 | 355 | 86.4 | 石英 | 40 | 31 | 15 | 77.6 | 2 |
| STS-ASS2020/075 | 355 | 25.4 | 石英 | 25 | 12.5 | 17 | 17.9 | 3 |
| STS-ASS5120/075 | 355 | 114.4 | 石英 | 48 | 40 | 20 | 104.4 | 2 |
| STS-ASS2060/292 | 515-545 | 62.4 | 石英 | 40 | 34 | 32 | 47.9 | 3 |
| STS-ASS2550/292 | 515-545 | 49.3 | 石英 | 30 | 23 | 20 | 45.7 | 2 |
| STS-ASS2560/292 | 515-545 | 58.4 | 石英 | 30 | 23 | 24.5 | 51.8 | 2 |
| STS-ASS5300/292 | 515-545 | 99.7 | 石英 | 41 | 20 | 16 | 86.7 | 3 |
| STS-ASS2020/292 | 515-545 | 24.5 | 石英 | 25 | 12.5 | 13.5 | 19.3 | 3 |
| STS-ASS6200/292 | 515-545 | 196.1 | 石英 | 54 | 48 | 15 | 188.5 | 2 |
| STS-ASS5370/292 | 515-545 | 174.5 | 石英 | 41 | 35 | 24 | 174.1 | 2 |
| STS-ASS6151/292 | 515-545 | 146.3 | 石英 | 56 | 50 | 20 | 135 | 2 |
| STS-ASS1030/121 | 532 | 29.8 | 玻璃 | 20 | 14 | 11 | 25 | 2 |
| STS-ASS0177/121 | 532 | 76.6 | 玻璃 | 41 | 35 | 24 | 64 | 3 |
| STS-ASS0115/121 | 532 | 89.4 | 玻璃 | 41 | 35 | 32 | 88.7 | 3 |
| STS-ASS6001/121 | 532 | 76.1 | 玻璃 | 54 | 48 | 36 | 63.9 | 3 |
| STS-ASS5340/121 | 532 | 88.9 | 玻璃 | 41 | 30 | 21.8 | 64.4 | 2 |
| STS-ASS5320/121 | 532 | 114.5 | 玻璃 | 41 | 31 | 15.5 | 105.8 | 2 |
| STS-ASS5151/328 | 1030-1090 | 148.9 | 石英 | 54 | 48 | 43 | 152.3 | 2 |
| STS-ASS6200/328 | 1030-1090 | 200.9 | 石英 | 54 | 48 | 15 | 193.2 | 2 |
| STS-ASS6101/328 | 1030-1090 | 100.6 | 石英 | 56 | 50 | 22.5 | 86.3 | 2 |
| STS-ASS1093/328 | 1030-1090 | 100.6 | 石英 | 48 | 42 | 22 | 86.1 | 2 |
| STS-ASS5201/328 | 1030-1090 | 200.1 | 石英 | 75 | 68 | 23 | 186.2 | 2 |
| STS-ASS5170/328 | 1030-1090 | 171.1 | 石英 | 50 | 45 | 43 | 175.2 | 2 |
| STS-ASS5152/328 | 1030-1090 | 153.4 | 石英 | 75 | 68 | 34 | 129.2 | 2 |
| STS-ASS2020/328 | 1030-1090 | 25.1 | 石英 | 25 | 12.5 | 13.5 | 19.8 | 3 |
| STS-ASS6120/328 | 1030-1090 | 120.1 | 石英 | 54 | 48.5 | 59 | 112.6 | 2 |
| STS-ASS5150/328 | 1030-1090 | 148.9 | 石英 | 50 | 45 | 43 | 152.6 | 2 |
| STS-ASS5120/328 | 1030-1090 | 128.7 | 石英 | 48 | 40 | 20 | 110.8 | 2 |
| STS-ASS2060/328 | 1030-1090 | 63.9 | 石英 | 40 | 34 | 32 | 49.3 | 3 |
| STS-ASS2250/328 | 1030-1090 | 249.8 | 石英 | 54 | 50 | 20 | 247.5 | 2 |
| STS-ASS5080/328 | 1030-1090 | 79.6 | 石英 | 54 | 48 | 36 | 60.2 | 3 |
| STS-ASS2560/328 | 1030-1090 | 59.9 | 石英 | 30 | 23 | 22.5 | 57.5 | 2 |
| STS-ASS2550/328 | 1030-1090 | 49.7 | 石英 | 30 | 23 | 20 | 48.4 | 2 |
非球面鏡的一個最大的優勢就是在需要透鏡系統的情況下，它這一個光學元件就能完成成像任務。非球面鏡的主要優點是：
球面像差小
重量輕
傳輸快
無內影
高純石英材料和低吸收鍍膜的結合降低了焦距和工作距離的熱效應導致的位移。
非球面鏡的另一個應用是可根據強度分布或相位進行光束整形。它可將高斯輪廓轉換為平頂輪廓。對于材料加工，它的優點是可使材料表面的去除更均勻，去除區和周?chē)牧现g的邊界更陡，由此而產生的熱效應影響的區域更小。
我們可生產直徑高達200毫米的非球面鏡?；谖覀兊臏y(cè)量裝置（干涉波前測試、觸覺和光學三維輪廓術）我們根據幾何結構可確保0.15mu;m PV（fWD）和RMSi<0.025mu;m的表面質量。還可測量高達21mm的矢狀高度，能夠在一定直徑下生產和測試非常陡峭的半徑。
我們的產品范圍包括可用于聚焦和準直的焦距從20-400mm的未裝配和已裝配的精密非球面鏡。也可根據客戶的特殊要求和形狀提供定制。我們的產品技術參數和性能如下:
尺寸
直徑: 12-200mm
直徑誤差: ±0.01mm
厚度誤差: ±0.025mm
表面形狀和誤差(ISO 10110; @546nm)
曲率凹半徑(局部): >35mm
矢狀偏差(PV): <0.5fr (~0.137um)
不規則性(PV): <0.5fr (~0.137um)
旋轉不變性(PV): <0.2gr (~0.055um)
RMSi: <0.1fr )~0.025um)
中心化（表面間的傾斜角度）: <1arcmin
清潔度/缺陷: 3x0.04 (S/D: 10/5)
材料
所有型號都是熔融石英 (Corning, Heraeus, Nikon, Ohara)
光學玻璃(CDGM, Hoya, Ohara, Schott, hellip;..)
測量方法
觸覺二維測量
通過白光干涉法進行2D/3D輪廓測量
干涉波前測量(632.8nm)

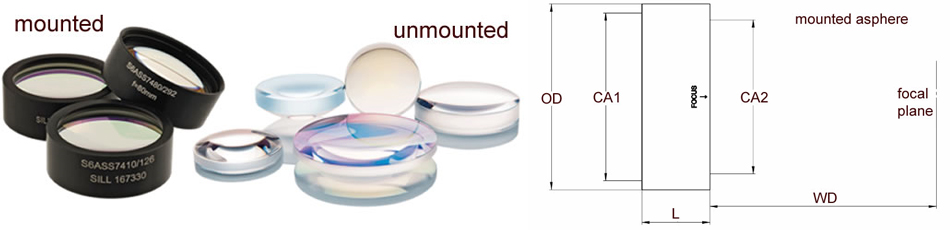

| 型號 | 波長 [nm] | 焦距FL [mm] | 材料 | OD-Oslash; [mm] | CA1 [mm] | L [mm] | WD [mm] | 裝配 |
| STS-ADX0220/328 | 1030-1090 | 20.0 | fs | 25.0 | 22.5 | 13.2 | 13.3 | 未裝配 |
| STS-ADX0230/328 | 1030-1090 | 30.0 | fs | 30.0 | 27.0 | 16.0 | 20.9 | 未裝配 |
| STS-ADX0240/328 | 1030-1090 | 40.0 | fs | 30.0 | 27.0 | 15.0 | 31.3 | 未裝配 |
| STS-ADX0250/328 | 1030-1090 | 50.0 | fs | 30.0 | 27.0 | 13.7 | 42.1 | 未裝配 |
| STS-ADX0260/328 | 1030-1090 | 60.0 | fs | 30.0 | 27.0 | 11.3 | 53.5 | 未裝配 |
| STS-ADX0310/328 | 1030-1090 | 100.0 | fs | 38.1 | 34.3 | 11.0 | 93.7 | 未裝配 |
| STS-ADX0311/328 | 1030-1090 | 100.0 | fs | 30.0 | 27.0 | 11.0 | 93.7 | 未裝配 |
| STS-ADX0312/328 | 1030-1090 | 120.0 | fs | 38.1 | 34.3 | 10.3 | 114.0 | 未裝配 |
| STS-ADX0313/328 | 1030-1090 | 120.0 | fs | 30.0 | 27.0 | 10.3 | 114.0 | 未裝配 |
| STS-ADX0315/328 | 1030-1090 | 150.0 | fs | 38.1 | 34.3 | 9.6 | 144.4 | 未裝配 |
| STS-ADX0316/328 | 1030-1090 | 150.0 | fs | 30.0 | 27.0 | 9.6 | 144.4 | 未裝配 |
| STS-ADX0320/328 | 1030-1090 | 200.0 | fs | 38.1 | 34.3 | 8.9 | 194.8 | 未裝配 |
| STS-ADX0325/328 | 1030-1090 | 250.1 | fs | 38.1 | 34.3 | 8.9 | 245.2 | 未裝配 |
| STS-ADX0330/328 | 1030-1090 | 300.0 | fs | 30.0 | 34.3 | 9.0 | 294.7 | 未裝配 |
| STS-ADX0370/328 | 1030-1090 | 71.8 | fs | 38.1 | 34.3 | 11.0 | 63.6 | 未裝配 |
| STS-ADX0380/328 | 1030-1090 | 80.0 | fs | 38.1 | 34.3 | 12.0 | 73.1 | 未裝配 |
| STS-ADX0381/328 | 1030-1090 | 80.0 | fs | 30.0 | 27.0 | 12.0 | 73.1 | 未裝配 |
| STS-ADX0510/328 | 1030-1090 | 100.0 | fs | 52.0 | 46.8 | 17.5 | 89.8 | 未裝配 |
| STS-ADX0512/328 | 1030-1090 | 120.0 | fs | 52.0 | 46.8 | 18.0 | 109.6 | 未裝配 |
| STS-ADX0515/328 | 1030-1090 | 150.0 | fs | 52.0 | 46.8 | 11.0 | 143.5 | 未裝配 |
| STS-ADX0520/328 | 1030-1090 | 200.1 | fs | 52.0 | 46.8 | 8.7 | 195.0 | 未裝配 |
| STS-ADX0530/328 | 1030-1090 | 300.0 | fs | 52.0 | 47.0 | 9.0 | 294.6 | 未裝配 |
| STS-ADX0540/328 | 1030-1090 | 400.0 | fs | 52.0 | 48.0 | 8.5 | 395.2 | 未裝配 |
| STS-ADX0580/328 | 1030-1090 | 80.9 | fs | 52.0 | 46.8 | 17.8 | 70.4 | 未裝配 |
| STS-ADX4350/373 | 420-480 | 50.0 | fs | 38.1 | 34.3 | 14.0 | 41.8 | 未裝配 |
| STS-ADX4360/373 | 420-480 | 60.0 | fs | 38.1 | 34.3 | 12.0 | 52.9 | 未裝配 |
| STS-ADX4370/373 | 420-480 | 70.0 | fs | 38.1 | 34.3 | 11.0 | 63.5 | 未裝配 |
| STS-ADX4380/373 | 420-480 | 80.0 | fs | 38.1 | 34.3 | 10.0 | 74.1 | 未裝配 |
| S6ASS7410/328 | 1030-1090 | 100.0 | fs | 41.0 | 37.0 | 15.0 | 91.7 | 未裝配 |
| S6ASS7412/328 | 1030-1090 | 120.0 | fs | 41.0 | 37.0 | 15.0 | 111.9 | 未裝配 |
| S6ASS7415/328 | 1030-1090 | 150.0 | fs | 41.0 | 37.0 | 15.0 | 142.2 | 未裝配 |
| S6ASS7420/328 | 1030-1090 | 200.0 | fs | 41.0 | 37.0 | 15.0 | 192.5 | 未裝配 |
| S6ASS7425/328 | 1030-1090 | 250.1 | fs | 41.0 | 37.0 | 15.0 | 242.0 | 已裝配 |
| S6ASS7480/328 | 1030-1090 | 80.0 | fs | 41.0 | 37.0 | 15.0 | 71.3 | 已裝配 |
| S6ASS7510/328 | 1030-1090 | 100.0 | fs | 56.0 | 50.0 | 20.0 | 89.0 | 已裝配 |
| S6ASS7512/328 | 1030-1090 | 120.0 | fs | 56.0 | 50.0 | 20.0 | 108.6 | 已裝配 |
| S6ASS7515/328 | 1030-1090 | 150.0 | fs | 56.0 | 50.0 | 20.0 | 142.2 | 已裝配 |
| S6ASS7520/328 | 1030-1090 | 200.1 | fs | 56.0 | 50.0 | 20.0 | 193.5 | 已裝配 |
| S6ASS7540/328 | 1030-1090 | 400.0 | fs | 56.0 | 50.0 | 18.3 | 393.5 | 已裝配 |
| S6ASS7580/328 | 1030-1090 | 80.9 | fs | 56.0 | 50.0 | 20.0 | 70.0 | 已裝配 |
| S6ASS8411/328 | 1030-1090 | 100.0 | fs | 36.0 | 28.0 | 20.5 | 90.0 | 已裝配 |
| S6ASS8413/328 | 1030-1090 | 120.0 | fs | 36.0 | 28.0 | 20.5 | 110.3 | 已裝配 |
| S6ASS8416/328 | 1030-1090 | 150.0 | fs | 36.0 | 28.0 | 20.5 | 140.6 | 已裝配 |
| S6ASS8420/328 | 1030-1090 | 20.0 | fs | 36.0 | 23.0 | 20.5 | 10.7 | 已裝配 |
| S6ASS8430/328 | 1030-1090 | 30.0 | fs | 36.0 | 28.0 | 20.5 | 18.8 | 已裝配 |
| S6ASS8440/328 | 1030-1090 | 40.0 | fs | 36.0 | 28.0 | 20.5 | 28.5 | 已裝配 |
| S6ASS8450/328 | 1030-1090 | 50.0 | fs | 36.0 | 28.0 | 20.5 | 38.9 | 已裝配 |
| S6ASS8460/328 | 1030-1090 | 60.0 | fs | 36.0 | 28.0 | 20.5 | 50.1 | 已裝配 |
| S6ASS8481/328 | 1030-1090 | 80.0 | fs | 36.0 | 28.0 | 20.5 | 69.6 | 已裝配 |
離子透鏡因其可以?xún)?chǔ)存量子位元（量子位元）以及量子計算機的相關用途，使其成為近年人們?cè)絹?lái)越感興趣的研究課題。當然，人們不僅要使用它，而且要通過各種基本實驗來詳細了解它們的行為。
我們?cè)O(shè)計了兩種透鏡，一種只用于觀察，一種結合激光聚焦鏡來做這些實驗。我們可以提供高數值孔徑和能應用到特定波長（紫外到紅外）的離子透鏡。但由于真空冷凍器的尺寸（如窗口厚度）不同，所以每個透鏡都必須根據現有條件進行特殊設計。
我們可以根據用戶窗口厚度進行調整也可以根據客戶的要求來定制研發離子透鏡。
上一個產品
下一個產品
